5 ton/6 ton Coal/Biomass Thermal Oil Boiler

Rated power : 1400~12000kw

Woking pressure : 0.8 Mpa

Working Temperature : 320℃

Fuel : Coal,wood chip, bagasse, straw, and other bagasse fuel

Application : Textile printing and dyeing, plastic and rubber, paper industry, wood industry, building material, food industry, etc.

Email:   [email protected]

>> Introduction

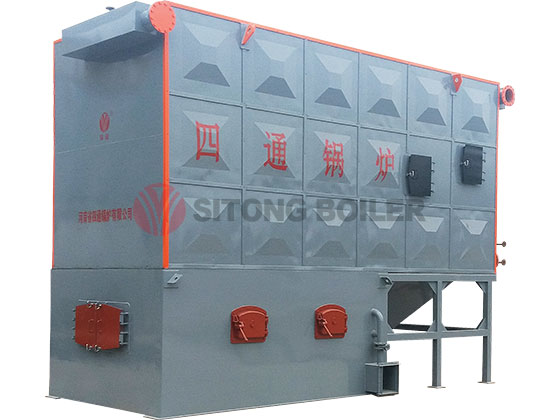

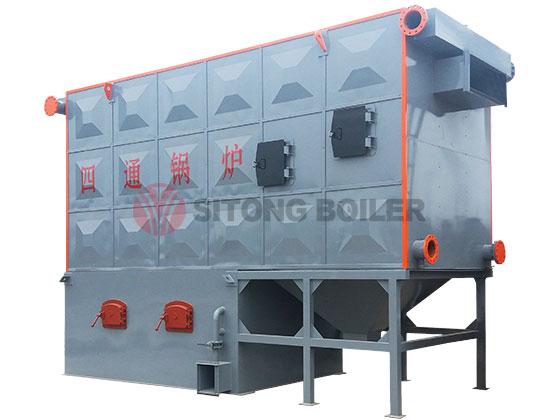

YLW series coal/biomass fired thermic fluid heater is a safe and energy saving boiler with working characteristics of low working pressure (0.8 MPa) and high temperature (350℃). The combustion equipment is chain grate (small scale flaker is available), has the advantages of feed mechanically, strong adaptability of different fuels, low coal leakage, and convenient maintenance. The fuel could be both coal and biomass fuels, includes wood, bagasse, straw, peanut shell, rice husk, etc.
Introduction
>> Features
Strong adaptability of different fuels

1. Strong adaptability of different fuels

Separated design for combustion equipment and upper proper, according to the different solid fuel, furnace and moving grate can be design individually .

2. Enough combustion chamber

Boiler combustion chamber is composed of chain grate and back and front arch , with large fuel combustion space, complete combustion, high thermal efficiency.
Strong adaptability of different fuels
Excellent coil design

3. Excellent coil design

Radiation section adopts the square coil, the convection section coil is made by serpentine, good performance of radiation coil thermal expansion, low stress, safe and reliable.

4. The optimal process design

Three return flue gas, medium flows through the conviction and radiation coils, with uniform velocity, safe and stable operation.
The optimal process design

>> Parameter

Model Rated power (KW) Working pressure(MPa) Working temperature (℃) Thermal efficiency  (%)

Overall dimension L×W×H (mm)

Reference weight (t)
YLW-1400MA 1400 0.8 <350 75 4121×1900×2900 14
YLW-3000MA 3000 0.8 <350 78 6000×2650×3240 30
YLW-4200MA 4200 0.8 <350 78 6900×2820×3470 40
YLW-6000MA 6000 0.8 <350 78 7900×3200×3475 48
YLW-10000MA 10000 0.8 <350 81 9200×3300×3550 70
YLW-12000MA 12000 0.8 <350 85 12600×3820×3630 142
Notes:Parameter is for reference only,if any changes should follow actual drawings.
