1 ton/2 ton Oil/Gas Vertical Type Thermal Oil Boiler

Rated power : 120~10000kw

Woking pressure : 0.8 Mpa

Temperature : 320℃

Fuel : natural gas, LPG gas,Heavy oil, diesel, etc.

Application : Chemical, oil, petrochemical, textile, printing, plastics , rubber, fiber , carbon , construction, cement , asphalt, metal , painting, wood processing , paper printing, nuclear industry , etc.

Email:   [email protected]

>> Introduction
Sitong YY(Q)L series oil fired thermal oil boiler will burn natural gas or oil, and use heat conduction oil as the heat carrier, the heat conduction oil is forced to circulate through the hot oil circulating pump to transfer the heat to other required heating equipments. Vertical type thermal oil boiler have the characteristics of compact structure, small size, light weight, small floor space, simple installation and operation, fast heating and no environment pollution etc.
Introduction
>> Features
High thermal efficiency

1. High thermal efficiency

The boiler is circulation heating in liquid phase, there is no heat loss leaded by condensing, thermal efficiency is high, and the boiler is very safe when operating. The boiler shell use aluminum silicate board for heat preservation, low heat loss.

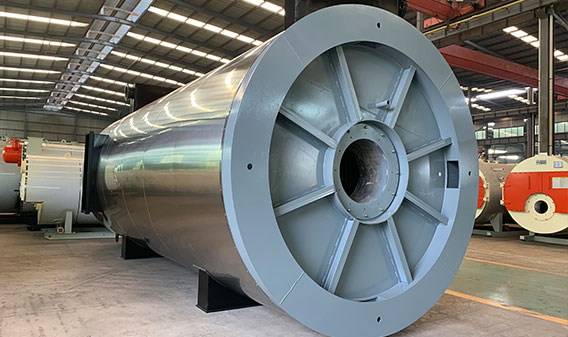

2. Large combustion chamber

The boiler combustion chamber is composed with large diameter coil, enough fuel combustion space , complete combustion, high thermal efficiency.
High thermal efficiency

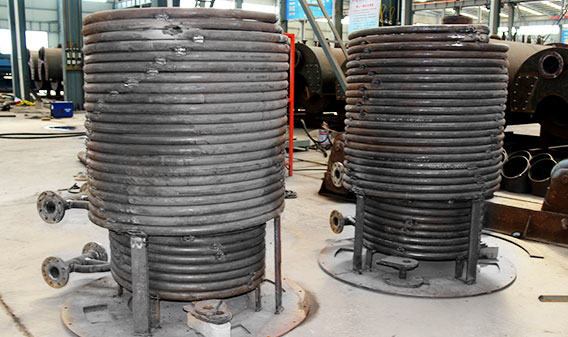

Excellent coil design

3. Excellent coil design

The spiral pipes are made of small diameter multi-head steel tubes, good thermal expansibility, low stress, safe and reliable.

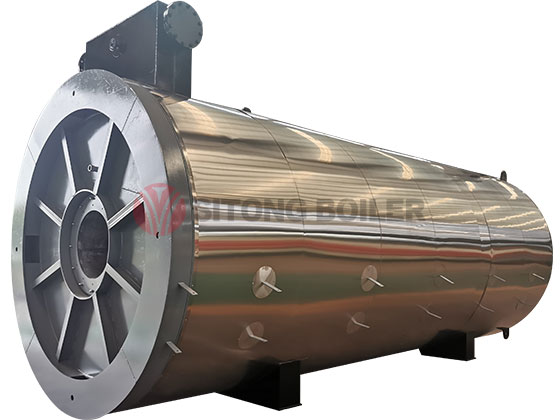

4. Sufficient output

The boiler adopts horizontal type three pass structure, improve the heat utilization efficiency. Large heating area, good heat transfer, achieve high thermal efficiency and sufficient output.
Sufficient output

>> Parameter

This is non-standard boiler, customize boiler based on customers' requirement.
