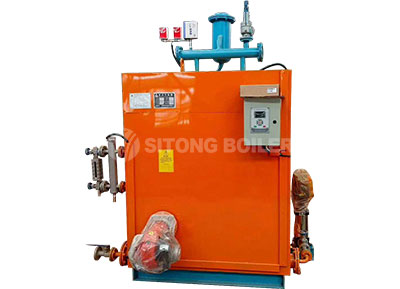

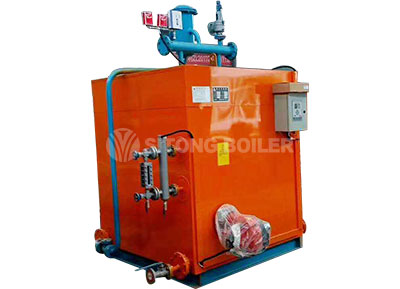

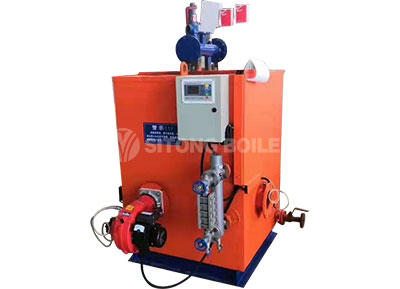

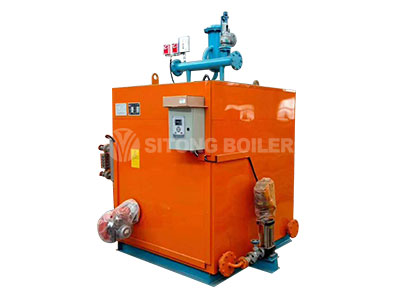

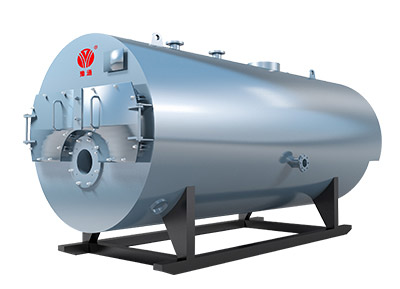

FTSG Oil/Gas Steam Generator

  • Overview
  • Advantage
  • Parameter
Sitong oil/gas steam generator is full Automatic operating, has the characterietic of high efficiency and energy saving, environmental protection, steam continuous and stable output, high steam purity, complete set delivery, convenient and simple. The steam generator output saturated steam fast, inside steam storage room large & steam enough, matched import burner, no pollution, low- emission.


Application


Steam generator is widely used in medicine, hotel, textile, building material, cultivation, food and beverage, sterilizing ,packing machine , food machine plastic foam, printing washing, rubber processing, paper making, wood processing, hotel and garment manufacturing and tanning , etc. Hot water boiler is widely used in hospital, school, hotel, neighborhoods and bath center, etc.


Performance Advantages

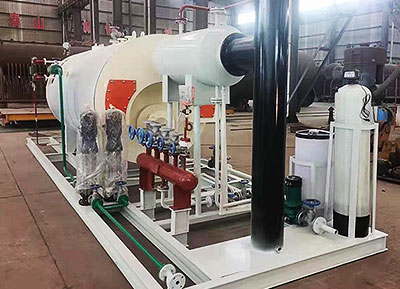

1. Skit- Mounted

Skit-Mounted Type , installation and commission simple & convenient . No need make foundation , can directly running after connect water & electric supply . Save the room space and investment for user.


 2. Out Put Steam Fast & High Steam Quality

 After 4 to 5 minutes ignition , then can got enough pressured steam output And it is applicable for the condition of on-off operation ,can provide steam quickly and timely.


 3. High Automatically

 Automatically control combustion ,steam pressure and water level , ensure safe and economical operation


 4. High efficiency & Sufficient output

The boiler heating area is sufficient ,fully absorb the effective heat, the exhaust flue gas temperature is low, thermal loss is low, thus it can have sufficient heating and big radiation heating surface.


 5. Environmental protection

The boiler running quiet, no noise, and combustion stable, completely comply with the environmental protection standard.



Parameter


Model

FTSG0.2-0.4-YQ

FTSG0.3-0.7-YQ

FTSG0.5-0.7-YQ

FTSG0.7-0.7-YQ

FTSG01.5-0.7-YQ




Rated Steam Capacity (t/h) 0.2 0.3 0.5 0.7 1.5
Rated Steam Pressure (Mpa) 0.4 0.7 0.7
0.7 0.7
Rated Steam Temperature () 150 170 170
170
170

Test Efficiency (%) 92-94 92-94
92-94
92-94
92-94
Electric Consumption (KW) 1 1 1.25 3.5 4.5
Natural Gas Consumption (Nm3/h) 15-20 18-28 25-35 31-58 80-105
Transportation Dimension (L*W*H) mm

1500*1250*2100

2000*1900*2500

2250*2550*2800

2400*2600*3000

2400*2620*3000



Voltage 380V  50HZ



Regulation Model Automatic





Application:


Performance Advantages


1. Skit- Mounted

Skit-Mounted Type , installation and commission simple & convenient . No need make foundation , can directly running after connect water & electric supply . Save the room space and investment for user.


 2. Out Put Steam Fast & High Steam Quality

 After 4 to 5 minutes ignition , then can got enough pressured steam output And it is applicable for the condition of on-off operation ,can provide steam quickly and timely.


 3. High Automatically

 Automatically control combustion ,steam pressure and water level , ensure safe and economical operation


 4. High efficiency & Sufficient output

The boiler heating area is sufficient ,fully absorb the effective heat, the exhaust flue gas temperature is low, thermal loss is low, thus it can have sufficient heating and big radiation heating surface.


 5. Environmental protection

The boiler running quiet, no noise, and combustion stable, completely comply with the environmental protection standard.





Model

FTSG0.2-0.4-YQ

FTSG0.3-0.7-YQ

FTSG0.5-0.7-YQ

FTSG0.7-0.7-YQ

FTSG01.5-0.7-YQ




Rated Steam Capacity (t/h) 0.2 0.3 0.5 0.7 1.5
Rated Steam Pressure (Mpa) 0.4 0.7 0.7
0.7 0.7
Rated Steam Temperature () 150 170 170
170
170

Test Efficiency (%) 92-94 92-94
92-94
92-94
92-94
Electric Consumption (KW) 1 1 1.25 3.5 4.5
Natural Gas Consumption (Nm3/h) 15-20 18-28 25-35 31-58 80-105
Transportation Dimension (L*W*H) mm

1500*1250*2100

2000*1900*2500

2250*2550*2800

2400*2600*3000

2400*2620*3000



Voltage 380V  50HZ



Regulation Model Automatic





Transaction Process

PRE-SALE SERVICE

1) 24 hours customer service hot line, we will offer you professional technical data, suggestion, and purchase guidance.

2) Welcome to visit our factory, we could offer you free airport pick up service, and help you book hotel, tickets, or plan route, etc.


ON-SALE SERVICE

Our professional engineering team will customize the boiler based on your requirement. Also, we could help arrange the boiler room and offer appropriate energy utilization plan, to maximum boiler users’ profit. Sitong Boiler cooperates with experienced transportation agency, to ensure the products arrive to destination intactly. We have overseas installation team for door to door installation, debugging, and periodic maintenance.

Process

customer inquiry -- professional consulting service, customize boiler based on requirement -- place order and pay deposit -- boiler manufacturing -- pay balance -- delivery -- installation, debugging and periodic maintenance


AFTER-SALE SERVICE

1) Offer lifelong door - to - door after sale service and quarterly visiting. We have professional overseas engineering team and overseas agencies, to solve users’ problems during boiler operation

2) 24 months warranty period, if boiler body or accessories are damaged under proper operation, Sitong boiler will maintenance or replace the damaged accessories for free (except spare parts).

3) 24 hours service hot-line, offer proper solutions to solve the problems happened during operation.
