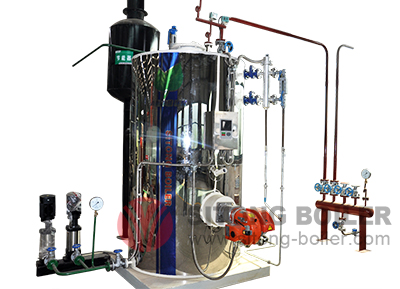

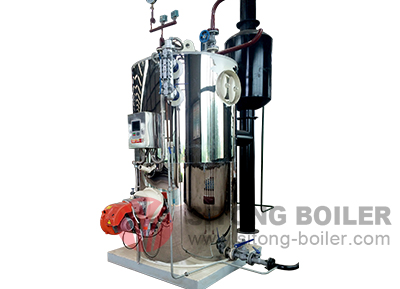

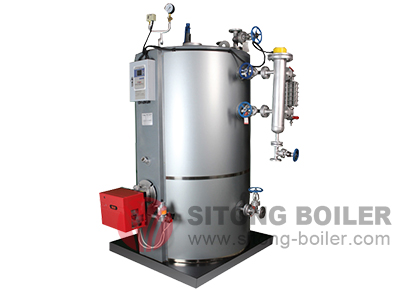

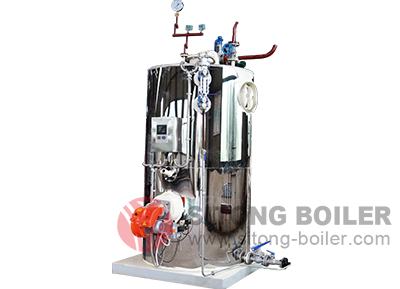

LSS Vertical Water Tube Steam Boiler
- Capacity :0.1-1t/h
- Pressure :0.4/0.7Mpa
- Fuel :Heavy oil,Furnace Oil, diesel, natural gas, LPG, etc.
- Application : Pharmacy, dying& textile, paper making,farming, rubber processing, food and beverage, plastics and foam,building materials,chemical hotels, Light industry, etc.
- Brief Intro :The vertical water tube steam boiler is once-through three-pass structure boiler, temperature rise up quickly, and high efficiency. The flame has two stage, combustion stable.
Email: [email protected]
Application:
LSS series vertical water tube steam boiler can be wildly used in pharmaceutical industry, chemical industry, light industry, textile, building materials, farming, food and beverage, plastics and foam, printing & dyeing and washing, rubber processing, paper making, wood processing, hotel, garment leather, etc. This series boiler can also be applied to generate electricity at some districts where electricity power is in short. Even they can be used as a power plant boiler start-up.
Performance Advantages
The boiler start up quickly, and could get stable temperature and enough pressure within a short time, steam is generated quickly.
2. High Thermal Efficiency
1) The boiler is advanced once-through structure, and the small water capacity achieves fast heat absorption.
2) The boiler adopts three-pass structure, absorbs the thermal expansion effectively.
3) Heat transfer fast ,reduce the heat loss , guarantee boiler efficiency
3. Advanced Burner
Equipped with high quality and reliable burner & original import , high combustion efficiency, low harmful gas emission and noiseless operation.
4. Safe Operation
Adopts automatic controller, operate conveniently and safely. The boiler has interlock protection system on water level, steam temperature, pressure, and flame out, etc.
5. Compact structure, low cost
The boiler size is minimized based on the precision calculation, on the premise of guarantee the boiler sufficient output, can save space and cost for user .
6. Convenient installation
The boiler is packaged delivery when leaving factory, so this boiler running only need to connect the water power, electric power, oil/ gas supply tube, and blowdown pipeline.ect
Parameter
| Model | Rated evaporation capacity (t/h) | Working pressure (Mpa) | Heating Area (m2) | Thermal efficiency (％) | Overall dimension (m) | Weight (t) |
| LSS0.1-0.4-Y(Q) | 0.1 | 0.4 | 3 | 89 | 0.8x 1.94 | 0.83 |
| LSS0.2-0.4-Y(Q) | 0.2 | 0.4 | 3 | 89.2 | 0.9x 2.7 | 1 |
| LSS0.3-0.4/0.7-Y(Q) | 0.3 | 0.4/0.7 | 3 | 89.5 | 1.2x 2.58 | 1.28 |
| LSS0.5-0.4/0.7-Y(Q) | 0.5 | 0.4/0.7 | 3 | 89.6 | 1.3x 2.95 | 2.1 |
| LSS0.7-0.4/0.7-Y(Q) | 0.7 | 0.4/0.7 | 3 | 91 | 1.6x 3.0 | 3.5 |
| LSS1-0.4/0.7-Y(Q) | 1 | 0.4/0.7 | 3 | 91 | 1.5x 3.2 | 4.1 |
The boiler start up quickly, and could get stable temperature and enough pressure within a short time, steam is generated quickly.
2. High Thermal Efficiency
1) The boiler is advanced once-through structure, and the small water capacity achieves fast heat absorption.
2) The boiler adopts three-pass structure, absorbs the thermal expansion effectively.
3) Heat transfer fast ,reduce the heat loss , guarantee boiler efficiency
3. Advanced Burner
Equipped with high quality and reliable burner & original import , high combustion efficiency, low harmful gas emission and noiseless operation.
4. Safe Operation
Adopts automatic controller, operate conveniently and safely. The boiler has interlock protection system on water level, steam temperature, pressure, and flame out, etc.
5. Compact structure, low cost
The boiler size is minimized based on the precision calculation, on the premise of guarantee the boiler sufficient output, can save space and cost for user .
6. Convenient installation
The boiler is packaged delivery when leaving factory, so this boiler running only need to connect the water power, electric power, oil/ gas supply tube, and blowdown pipeline.ect
| Model | Rated evaporation capacity (t/h) | Working pressure (Mpa) | Heating Area (m2) | Thermal efficiency (％) | Overall dimension (m) | Weight (t) |
| LSS0.1-0.4-Y(Q) | 0.1 | 0.4 | 3 | 89 | 0.8x 1.94 | 0.83 |
| LSS0.2-0.4-Y(Q) | 0.2 | 0.4 | 3 | 89.2 | 0.9x 2.7 | 1 |
| LSS0.3-0.4/0.7-Y(Q) | 0.3 | 0.4/0.7 | 3 | 89.5 | 1.2x 2.58 | 1.28 |
| LSS0.5-0.4/0.7-Y(Q) | 0.5 | 0.4/0.7 | 3 | 89.6 | 1.3x 2.95 | 2.1 |
| LSS0.7-0.4/0.7-Y(Q) | 0.7 | 0.4/0.7 | 3 | 91 | 1.6x 3.0 | 3.5 |
| LSS1-0.4/0.7-Y(Q) | 1 | 0.4/0.7 | 3 | 91 | 1.5x 3.2 | 4.1 |
Transaction Process
PRE-SALE SERVICE
1) 24 hours customer service hot line, we will offer you professional technical data, suggestion, and purchase guidance.
2) Welcome to visit our factory, we could offer you free airport pick up service, and help you book hotel, tickets, or plan route, etc.ON-SALE SERVICE
Our professional engineering team will customize the boiler based on your requirement. Also, we could help arrange the boiler room and offer appropriate energy utilization plan, to maximum boiler users’ profit. Sitong Boiler cooperates with experienced transportation agency, to ensure the products arrive to destination intactly. We have overseas installation team for door to door installation, debugging, and periodic maintenance.
Process
customer inquiry -- professional consulting service, customize boiler based on requirement -- place order and pay deposit -- boiler manufacturing -- pay balance -- delivery -- installation, debugging and periodic maintenance
AFTER-SALE SERVICE
1) Offer lifelong door - to - door after sale service and quarterly visiting. We have professional overseas engineering team and overseas agencies, to solve users’ problems during boiler operation
2) 24 months warranty period, if boiler body or accessories are damaged under proper operation, Sitong boiler will maintenance or replace the damaged accessories for free (except spare parts).
3) 24 hours service hot-line, offer proper solutions to solve the problems happened during operation.
