Capacity : 0.5~20t/h
Pressure : 0.7/1.0/1.25/1.6Mpa
Fuel : Natural Gas, Lpg, Diesel, Hfo, Bunker Oil, Furnace Oil
Application : Medicine, chemical, light industry, textile, building material, food processing, laundry, hotel, etc.
Brief Intro : WNS boiler is a safe and high efficiency (98%) heating equipment with high automation, it is fast assemble boiler with flue gas three pass and wet back structure, widely used for industrial production.
Email: [email protected]
1. Fully wet back combustion chamberThe reburning chamber abutting with the rear tube plate, boiler is 100% fully butt welded, lower stress, and reliable quality.

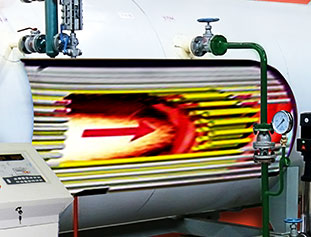

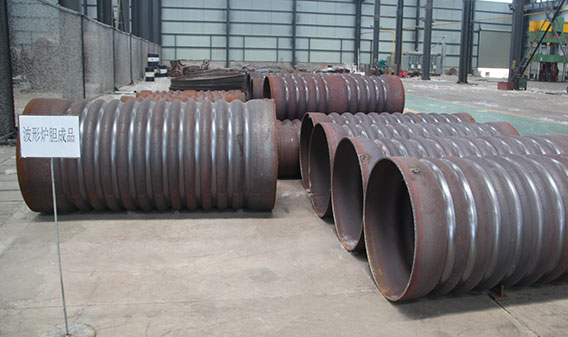

2. Large-diameter corrugated furnaceThe boiler combustion chamber is composed of large-diameter corrugated furnace, larger combustion space, completed combustion, larger heating area, higher thermal efficiency.
3. Multi-functional anti-explosion deviceThe boiler rear plate equip with anti-explosion device which connected to the furnace, it can release the pressure and self-reseted once fuel deflagration in the furnace. At the same time, it has the function of fire watching and inspection.

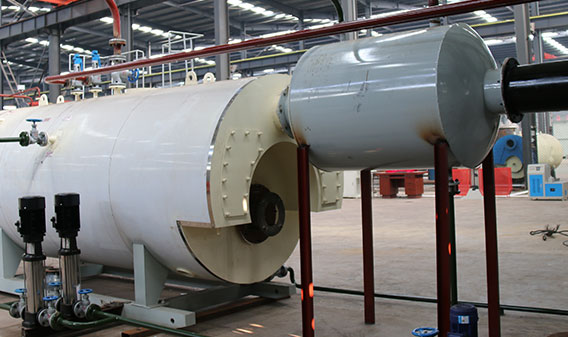

4. High thermal efficiencyThe economizer was equipped at the rear of boiler, which can reduce the exhaust gas temperature and increase boiler feed water temperature,improve efficiency can reach to 96% (fuel: natural gas ).
|Light oil (Kg/h)||Natural gas (Nm³/h)|
|Note: Parameter is for reference only, we can design the boilers based on customers’ needs.|
Hot Water Boiler
|Model||Rated Power (MW)||Working Pressure (MPa)||Efficiency (%)||Fuel consumption||Weight (kg)||
|Light Oil (kg/h)||LNG (Nm3/H)||CG (Nm3/H)|
Note: 1. The heat value of LNG: 8500kal/Nm3, heat value of light oil: 10300kal/Nm3, heat value of the city gas: 4000kal/Nm3
2. Parameter is for reference, if any changes, should follow the actual drawing.
