3 ton/4 ton Oil/Gas Thermal Oil Boiler

Rated power : 120~10000kw

Pressure : 0.8Mpa

Fuel : Heavy oil, diesel, natural gas, LPG, etc.

Application : Textile printing and dyeing, plastic and rubber, wood industry, building material, machinery industry, food industry, etc.

Brief Intro : YY(Q)W series oil fired thermal oil boiler is an safe and energy saving boiler with working characteristics of low working pressure (0.8 MPa) and high temperature (330℃)

Email:   [email protected]

>> Introduction
Sitong YY(Q)W series oil fired thermal oil boiler is an safe and energy saving boiler with working characteristics of low working pressure (0.8 MPa) and high temperature (330℃). It is patent products of Sitong Boiler, the patent number is ZL 2014 2 0508472.3. The heat carrier is heat conduction oil, the circulating pump force heat transfer medium circulating in liquid phrase, and transfer heat to heat user equipment, then return to the heating furnace for reheating.
Introduction
>> Features

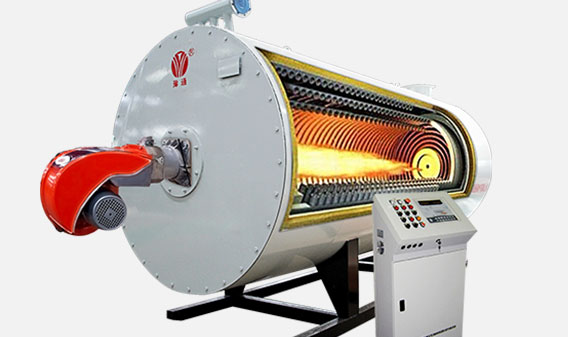

High thermal efficiency

1. High thermal efficiency

The boiler is circulation heating in liquid phase, there is no heat loss leaded by condensing, thermal efficiency is high, and the boiler is very safe when operating. The boiler shell use aluminum silicate board for heat preservation, low heat loss. By equipped with economizer, make full use of flue gas heat, decrease the exhaust smoke temperature.

2. Large combustion chamber

The boiler combustion chamber is composed with large diameter coil, enough fuel combustion space, sufficient combustion, high thermal efficiency. Moreover, the boiler adopts positive pressure combustion, improve the combustion efficiency.
High thermal efficiency

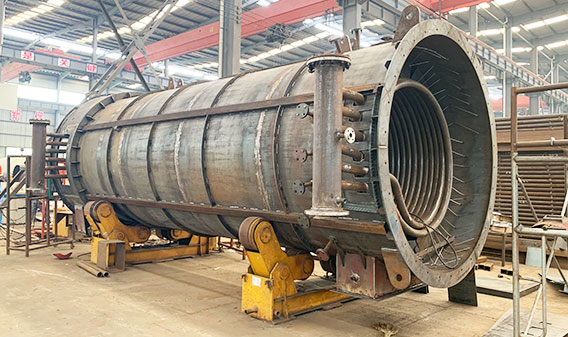

Excellent coil design

3. Excellent coil design

The spiral pipes are made of small diameter multi-head steel tubes, good thermal expansibility, low stress, safe and reliable.

4. Sufficient output

The boiler adopts horizontal type three pass structure, improve the heat utilization efficiency. Large heating area, good heat transfer, achieve high thermal efficiency and sufficient output.
Sufficient output

>> Parameter

Model Rated power(KW) Design pressure (Mpa) Medium outlet temperature(℃) Thermal efficiency (%)

Overall dimension L×W×H (mm)

Reference weight (t)
YY(Q)W-120Y(Q) 120 1.1 ≤350 75 1600×1020×1520 1.5
YY(Q)W-1000Y(Q) 1000 1.1 ≤350 85 3300×1670×2486 5
YY(Q)W-2400Y(Q) 2400 1.1 ≤350 85 5080×2200×3180 9.8
YY(Q)W-3000Y(Q) 3000 1.1 ≤350 85 5983×2420×3404 15.5
YY(Q)W-4700Y(Q) 4700 1.1 ≤350 85 7285×2570×3760 21.5
YY(Q)W-6000Y(Q) 6000 1.1 ≤350 85 7800×3050×3800 25
YY(Q)W-7000Y(Q) 7000 1.1 ≤350 85 8200×3050×3800 27.5
YY(Q)W-10000Y(Q) 10000 1.1 ≤350 85 10000×3500×4000 32

Notes: Parameter is for reference only,if any changes should follow actual drawings.
