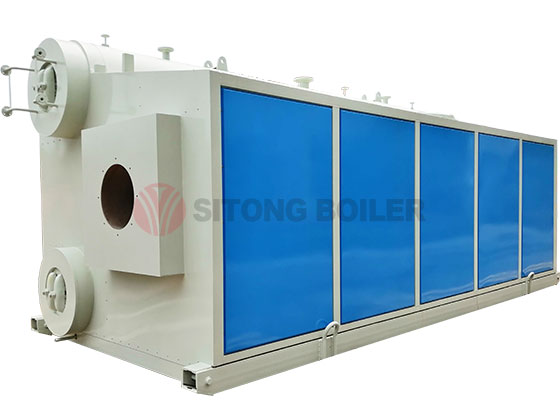

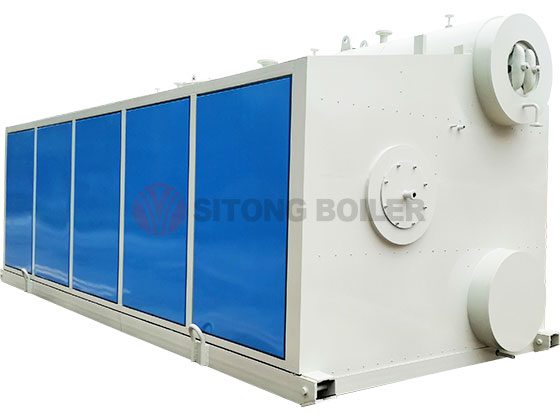

12 ton/15 ton Oil/Gas Double Drum Boiler

Capacity : 2tph~50tph

Pressure : 1.0 MPa~ 4.9 MPa

Fuel : City gas, natural gas, coke gas, and other oil gas fuels

Application : Chemical industry ,Textile industry, paper making , food & beverage, Rubber Processing laundry, Wood Processing etc.

Brief Intro : SZS series water tube boiler has double drums, and arranged as “D” shape, adopts membrane cooling wall, has the characteristics of high steam quality, sufficient output, and high thermal efficiency (97%), etc.

Email:   [email protected]

>> Introduction

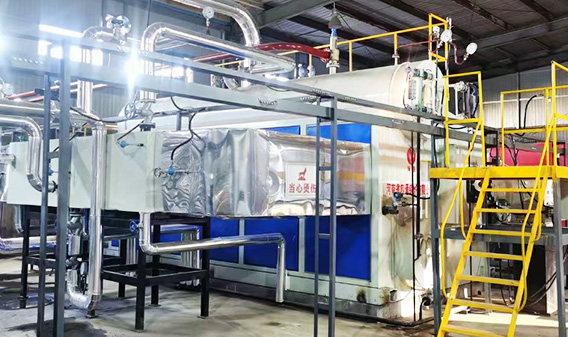

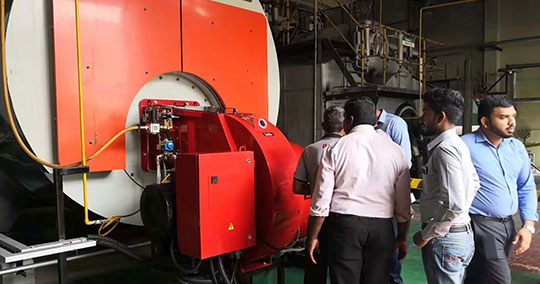

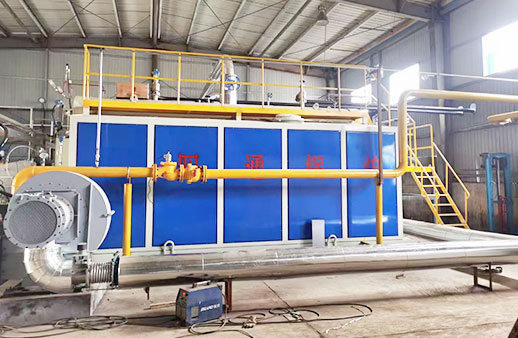

The product is a typical type "D" quick-installed water tube boiler. It consists of upper and lower drums, membrane water wall, convection tube bundle, economizer and condenser. The burner is arranged on the front wall. After the fuel is burned in the furnace, the flue gas is discharged through the convection tube bundle, the economizer the condenser and chimney.
Introduction
>> Features
“D” shaped layout

1. “D” shaped layout

The boiler adopts D-type arrangement and the flame fullness is good.

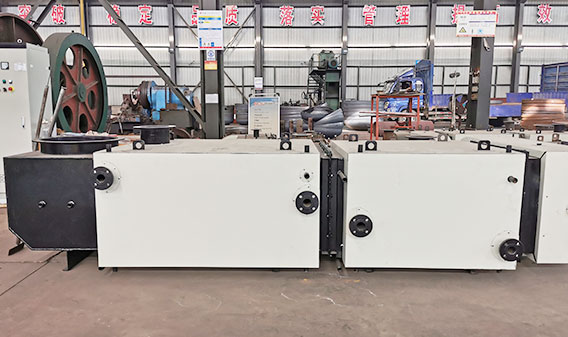

2. Improve thermal efficiency

Two-stage energy saving devices are adpoted. economizer and condenser are always equipped on the rear or top of boiler,which can reduce the exhaust gas temperature and improve the thermal efficiency. The thermal efficiency can reach to 104% (fuel: natural gas l).
“D” shaped layout
Sufficient output

3. Sufficient output

The boiler has a surplus heating area and large enough steam water space to ensure sufficient and high quality steam output.

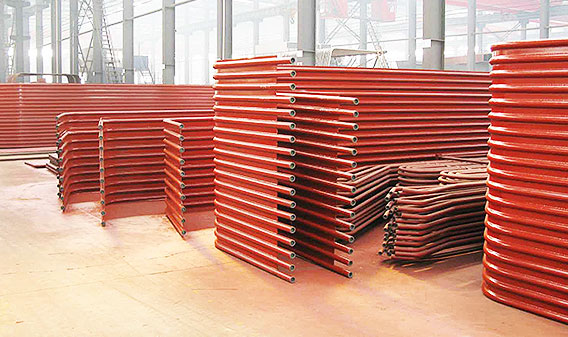

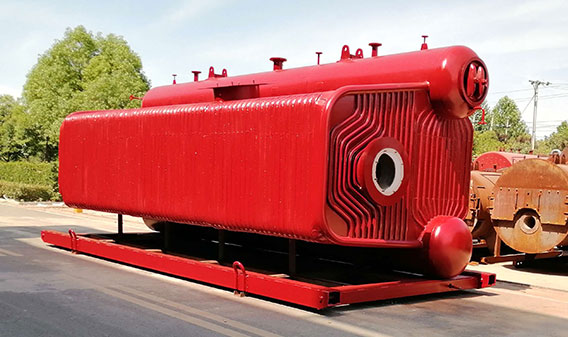

4. Membrane wall structure

The furnace water wall and convection flue are all adopts membrane wall structure, which has good sealing performance and reduces the refractory bricks maintenance workload.
Membrane wall structure

>> Parameter

Steam Boiler

Model Rated Evaporation
(t/h)
Rated Steam Temperature
(℃)
Working Pressure
(Mpa)
Water Supply Temperature
(℃)
Heating Area
(㎡)
Overall Dimension
(mm)
SZS4-1.25-Y(Q) 4 194 140

172

/ 5700×1900×3600
SZS10-1.25-Y(Q) 10 194 1.25 20 340.23 8500×5865×4670
SZS15-1.25-Q 15 194 1 104 632.99 7970×4628×3470
SZS20-1.25-Y(Q) 20 194 1.25 105 556.64 12220×6895×4465
SZS25-1.25-Y(Q) 25 194 1.25 105 714 10860×70000×4850
SZS30-2.45-Y(Q) 30 225 2.45 105 767 12900×7000×4850
SZS35-2.45-Y(Q) 35 225 2.45 105 958 12910×7000×4850
SZS50-2.45-Y(Q) 50 225 2.45 105 1230 13200×12000×4700

Note: Parameter is for reference only, if any changes should follow the factory technical data.


Hot Water Boiler

Model Rated Power
(MW)
Working Pressure
(Mpa)

Heating Area

 (㎡)

Fuel Consumption

Overall Dimension

 (m)

Light Oil (kg/h) Natural Gas (Nm³/H)
SZS7-1.0/115/70-Y(Q) 7 1.0 163 642 806 7.8×3.4×3.34
SZS10.5-1.0/115/70-Y(Q) 10.5 1.0 258 963 1137 7.1×3.66×3.5
SZS14-1.25/115/70-Y(Q) 14 1.25 245 1284 1551 10.2×6.6×4.8
SZS21-1.25/130/70-Y(Q) 21 1.25 394 1922 2322 12.3×7×5.4
SZS46-1.6/130/70-Y(Q) 46 1.6 1147 4203 4923 15.6×9.4×7.8
Note: Parameter is for reference only,we can design the new products based on your requirement.
